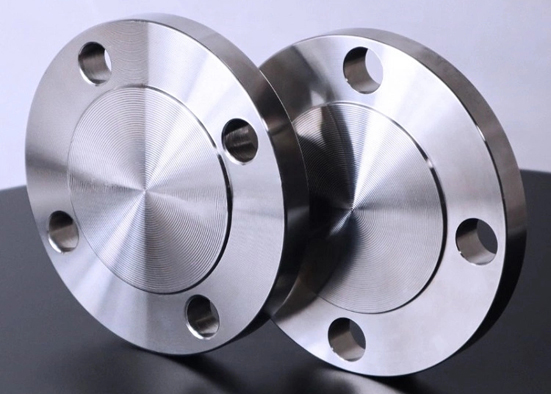

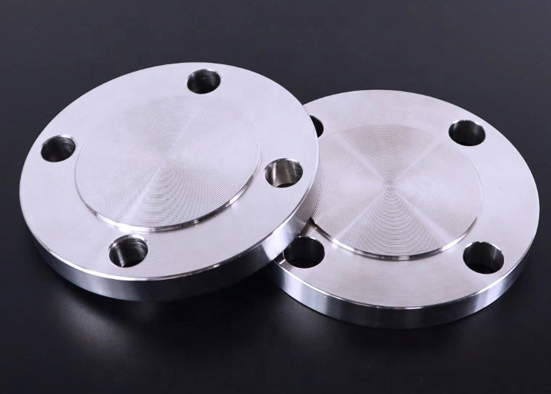

ASME B16.5 PN16 Stainless Steel Blind Flange Forged Flange Used In Industrial Pipelines

Flange cover is also called blind flange or blind plate. It is a flange without a hole in the middle, which is used to seal the pipe plug. The function is the same as the welding head and the threaded pipe cap, except that the blind flange and the threaded pipe cap can be removed at any time, while the welded head cannot.

Introduction

There are many types of sealing surface, including full plane, raised surface, concave-convex surface, tongue and groove surface, ring connection surface.
Flange cover sealing surface
Flat surface (FF), raised surface (RF), concave and convex surface (MFM), tongue and groove surface (TG), ring connection surface (RJ)

Detailed introduction

Specification: 1/2″~80″(10-2000) Pressure rating: 0.6Mpa ~32Mpa, 150Lb ~2500Lb, PN0.25-PN42.0 Material: 20#, 304, 304L, 321, 316, 316L, 310S, etc. Common standards for various materials: National standard: GB/T9112-2000 (GB9113?1-2000~GB9123?4-2000) American standard: ANSI B16.5 Class150, 300, 600, 900, 1500 (WN, SO, BL, TH , LJ, SW) Japanese standard: JIS 5K, 10K, 16K, 20K (PL, SO, BL, WN, TH, SW) German standard: DIN2573, 2572, 2631, 2576, 2632, 2633, 2543, 2634, 2545 ( PL, SO, WN, BL, TH) Ministry of Chemical Industry Standards: HG5010-52~HG5028-58, HGJ44-91~HGJ65-91, HG20592-97 series, HG20615-97 series Machinery Ministry Standards: JB81-59~JB86-59 , JB/T79-94~JB/T86-94, JB/T74-1994 Pressure vessel standard: JB1157-82~JB1160-82, JB4700-2000~JB4707-2000 Application scope: boiler pressure vessel, petroleum, chemical industry, shipbuilding, Pharmaceutical, metallurgy, machinery, food and other industries. Flange connection is an important connection method for pipeline construction.

      Hebei Zexu Pipeline Manufacturing Co., Ltd. has a complete production and operation management system and is one of the first companies in the industry to pass the ISO9001 quality management system certification, HSE environment, and occupational health and safety management system certification. The company has three manufacturing branches for steel pipes, pipe fittings, and boiler vessels, and has functional departments such as marketing department, technology department, purchasing department, production department, inspection department, quality assurance department, and comprehensive department. It has established a complete and complete set of quality, Safety, production and management procedures.
      After years of development, Hebei Zexu Pipeline Manufacturing Co., Ltd. has a nationwide business network and radiates to the United States, India, Pakistan, Russia, the Middle East and other countries and regions.
      Hebei Zexu Pipe Manufacturing Co., Ltd. has always adhered to the business philosophy of honesty, innovation and cooperation to promote development, customer satisfaction and trust as the foundation, sustainable development as the goal, relying on scientific management to improve quality, reduce costs, and create brands. For many consecutive years, it has been awarded as "Advanced Unit for Safety Production Standardization Construction", "Hebei Province Industrial Cluster Leading Enterprise", "AAA Credit Enterprise", "Hebei Province Metal Products Industry Leading Enterprise", "Hebei Province Key Employment Service Enterprise", "Star Enterprise", "Top 50 Industrial Enterprises in Cangzhou City", "Famous Trademark of Hebei Province", "Contract-abiding and Promise-keeping Unit", "Recommended Supplier of Main Auxiliary Equipment for Thermal Power Units" and other honorary titles.
