    Sliver 2500LB PN100 JIS 40K ASME B16.5 Steel Pipe Flange

    Ask Lasest Price
    Brand Name : ZeXu
    Model Number : 1/2"-24"
    Certification : CE,API
    Price : $6.00 - $52.00
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000 pieces per week
    Delivery Time : Shipped in 5-10 days after payment
    MOQ : 1 pieces
    • Product Details
    • Company Profile

    Sliver 2500LB PN100 JIS 40K ASME B16.5 Steel Pipe Flange

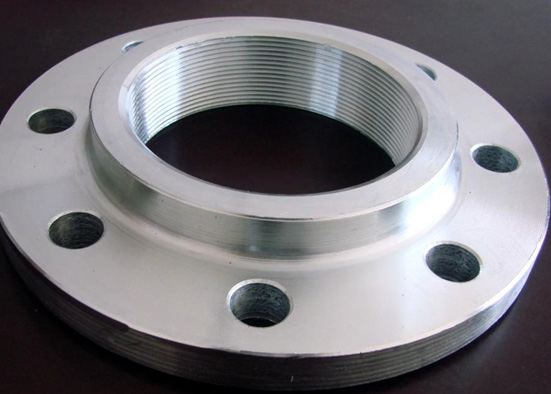

    Forged Flange ASME B 16.5 Stainless Steel Threaded Flange

    Threaded flange refers to a kind of flange connected with pipe by thread. When designing, it can be handled as loose flange.The advantage is that there is no need for welding, and the additional torque generated on the cylinder or pipeline when the flange is deformed is small. The disadvantage is that the flange thickness is large and the cost is high. Suitable for the connection of high-pressure pipelines.

    Precautions for use

    Threaded flange is a kind of non-welded flange by processing the inner hole of the flange into pipe thread and matching with threaded pipe to realize connection. Compared with the flat welding flange or the butt welding flange, the threaded flange has the characteristics of convenient installation and maintenance, and can be used on some pipelines that are not allowed to be welded on site. The alloy steel flange has enough strength, but it is not easy to weld, or the welding performance is not good, you can also choose the threaded flange. However, when the temperature of the pipeline changes sharply or the temperature is higher than 260℃ and lower than -45℃, it is recommended not to use threaded flanges to avoid leakage.


    Product name
    Forged Flange ASME B 16.5 Stainless Steel Threaded Flange
    Usage
    Used for the connection of all kinds of pipelineto convey the water, steam, air, gas and oil
    Package
    Wooden cases/pallets
    Standard
    ANSI
    ANSI B16.5 ASME B16.47 series A/B
    DIN
    DIN
    GOST
    GOST 12820-80 12820-81
    EN
    EN1092-1:2002
    JIS
    JIS B2220-2004, KS D3576, KS B6216 KS B1511-2007 JIS B2261; JIS B8210
    BS
    BS4504 BS10 Table D/E
    Material
    ANSI
    F 304/L, F316/L F317L,F347H,F321,F904L,F310S ,F51/60 F53,F44,A105,A105N Alloy Steel: WHPY45/52/65/80 Alloy Steel: WHPY45/52/65/80
    DIN
    CS RST37.2;S235JR SS 304/304L,316/316L
    GOST
    CS CT20;16MN;SS 304/304L,316/316L
    EN
    CS RST37.2;S235JR;C22.8SS 304/304L,316/316L
    JIS
    SS400,SF440 SS 304/304L, 316/316L
    BS
    CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316
    Pressure
    ANSI
    Class 150, 300, 600, 900, 1500 2500lbs
    DIN
    PN6,PN10,PN16,PN25,PN40,PN64,PN100
    GOST
    PN6,PN10,PN16,PN25
    EN
    PN6,PN10,PN16,PN25,PN40,PN64,PN100
    JIS
    1K,2K,5K,10K,16K,20K,30K,40K
    BS
    PN6,PN10,PN16,PN25,PN40,PN64,PN100
    Size
    ANSI
    1/2″ – 60″
    DIN
    DN15-DN2000
    GOST
    DN15-DN1600
    EN
    DN15-DN2000
    JIS
    15A-1500A
    BS
    DN15-DN2000
