    Double Flange Pipe Sea Water DN20 Power Plant Accessories

    Ask Lasest Price
    Brand Name : ZeXu
    Model Number : DN20mm-DN1000mm
    Certification : CE,API
    Price : $28-$42
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000 pieces per week
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

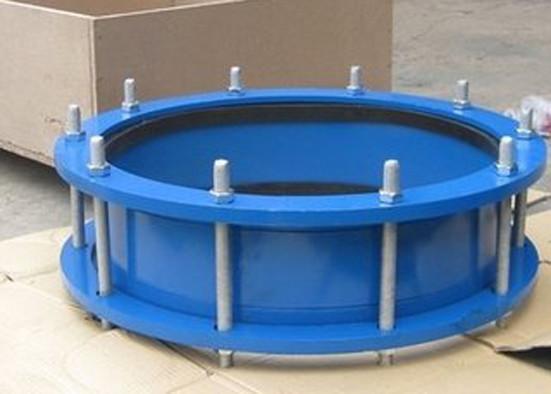

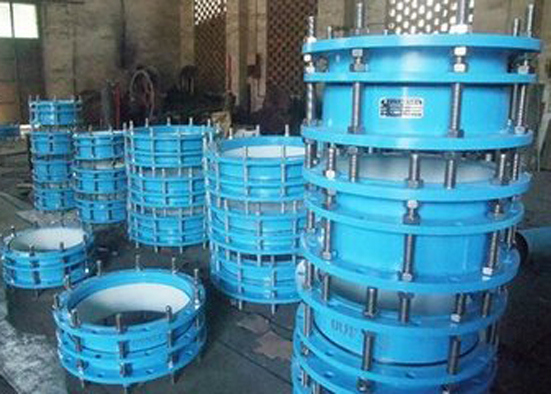

    Double Flange Pipe Sea Water DN20 Power Plant Accessories

    DN20-DN1000 Pipe Fitting Double Flange Force Transfer Joint Petrochemical Power Plant Accessories


    The double-flange power transmission joint is composed of a loose flange expansion joint, a short pipe flange, a force transmission screw and other components, which can reduce the pressure thrust (blind plate force) of the connected parts and compensate for pipeline installation errors. The force transmission joint cannot absorb axial displacement.


    Effect


    Double flange power transmission joints are mainly used for loose sleeve connection of pumps, valves and other accessories. The double flange loose sleeve power transmission joint is composed of a loose sleeve expansion joint, a short pipe flange, a force transmission screw and other components. It can transmit the pressure thrust (blind plate force) of the connected part and compensate the pipeline error, and cannot absorb the axial direction. Displacement. It is mainly used for loose sleeve connection of pumps, valves, pipelines and other accessories.


    Parameter


    Nominal passage: DN20mm-DN3200mm

    Working pressure: 0.6-2.5MPA

    Use medium: water, sewage.

    Sealing material: NBR

    Manufacturing standard: ASME B16.9

    minal Diameter DNExternal diameter of pipe DwOverall DimensionsFlange Connecting Dimension
    0.6Mpa1.0Mpa
    LΔLDD1n-ThbDD1n-Thb
    6576200401601304-M12161851454-M1620
    80891901504-M16182001608-M1622
    10011421017022018024
    1251402402008-M162025021026
    1501682652252852408-M20
    2002193202802234029528
    25027337533512-M162439535012-M20
    3003252205044039512-M2024445400
    3503774904452650546016-M2030
    40042654049512-M202856551516-M2432
    4504805955502861556520-M2432
    50053064560020-M203067062020-M2434
    60063024075570520-M243078072524-M2736
    70072086081024-M243289584024-M3040
    8008203506097592024-M2734101595028-M3044
    9009201075102024-M27361115105028-M3346
    100010201175112028-M27361230116032-M3650
    120012203701405134032-M30401455138036-M3956
    140014201630156036-M33441675159040-M4562
    160016203801830176040-M33481915182044-M4568
    180018202045197044-M36502115202048-M4570
    200020204002265218048-M39542325223052-M5274
    220022202475239052-M39602550244056-M5280
    240024202685260056-M39622760265060-M5282
    26002620450802905281060-M45642960285064-M5288
    280028203115302064-M45683180307068-M5694
    300030203315322068-M45703405329068-M56100
    320032203525343372-M4576
