    Pipe Compensator 85Mpa DN600 Power Plant Accessories

    Ask Lasest Price
    Brand Name : Ze Xu
    Model Number : JZBW
    Certification : CE API
    Price : $1 -$100
    Supply Ability : 10000 Piece/Pieces per Month Bellow expansion joint produced on request
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

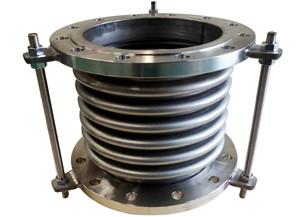

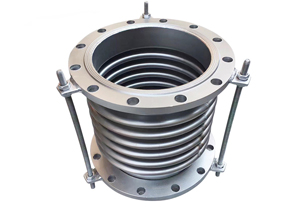

    Pipe Compensator 85Mpa DN600 Power Plant Accessories

    Pipe Fitting Plumbing Stainless Metallic expansion joint Bellows ripple Compensator for exhaust


    Competitive price high quality limited metal stainless steel bellows expansion joint


    The form: this product consists of rubber pipe, made of inner glue, multi-layer proofinf and cord fabric and outer glue abd metal woggle joint .

    It is applicable for the connection of inlet and outlet pipes of various fancoil sets of air conditionings in the guest rooms of hotels and restaurants.


    Competitive price high quality limited metal stainless steel bellows expansion joint,


    1. All expansion joints are finshed with retaining flanges,limit rod units are available on special request.

    2. Pressures shows are recommended"operating",test pressure is 1.5time"operating",burst pressure is 3 time "operating".

    3. Vacuum rating is based on neutral installed length without external load.Products shall not be installed "elongated"on vacuum applications.

    4. Do not weld near the expansion joints or weld the steel flanges to the piping after the expansion joints are installed .This will either burn or seriously damage the expansion joints.

    our Product Specifications in this catalogues for reference only. Huayuan reserve the right to change design , construction,specification and materials without prior notice and without incuring any obligation.Any precise measurements,kindly contact with Huayuan technical service directly.


    Diameter
    (mm)
    Pressure grade
    (Mpa)
    Available Area of Bellows
    (c㎡)
    Max Size of External Diameter
    (mm)
    Length
    (mm)
    1.0
    1.6
    2.5
    Flange
    Tube
    32
    20/26
    18/63
    15/98
    16
    225
    160/250
    264/280
    40
    20/24
    18/89
    15/98
    23
    244
    164/259
    269/289
    50
    20/70
    18/70
    15/106
    37
    259
    172/276
    282/306
    65
    26/44
    22/55
    15/138
    55
    270
    215/294
    300/322
    80
    34/33
    28/41
    19/68
    81
    284
    240/338
    344/366
    100
    40/75
    35/93
    25/54
    121
    304
    235/317
    323/345
    125
    38/59
    34/74
    29/117
    180
    334
    282/314
    316/342
    150
    40/62
    34/78
    29/92
    257
    364
    282/339
    338/367
    200
    59/52
    53/58
    46/65
    479
    442
    340/402
    402/426
    250
    87/35
    79/39
    48/78
    769
    507
    393/459
    493/399
    300
    87/37
    79/41
    71/47
    1105
    562
    464/525
    564/565
    350
    87/44
    79/48
    71/45
    1307
    622
    509/564
    609/604
    400
    87/43
    79/47
    71/47
    1611
    562
    522/566
    622/628
    450
    87/37
    79/41
    47/75
    1972
    700
    403/498
    503/523
    500
    87/68
    79/75
    71/45
    2445
    760
    431/523
    531/554
    600
    87/85
    79/94
    71/82
    3534
    835
    478/548
    578/588
    700
    87/77
    79/85
    71/103
    4717
    1110
    490
    590
    800
    102/102
    94/112
    71/95
    5822
    1265
    502
    602
    900
    102/97
    94/107
    80/123
    7620
    1186
    /
    698
    1000
    102/105
    94/106
    82/117
    9043
    1286
    /
    692
