Cable Accessories And Nut Stainless Steel U-Bolt For Electric Power Fitting

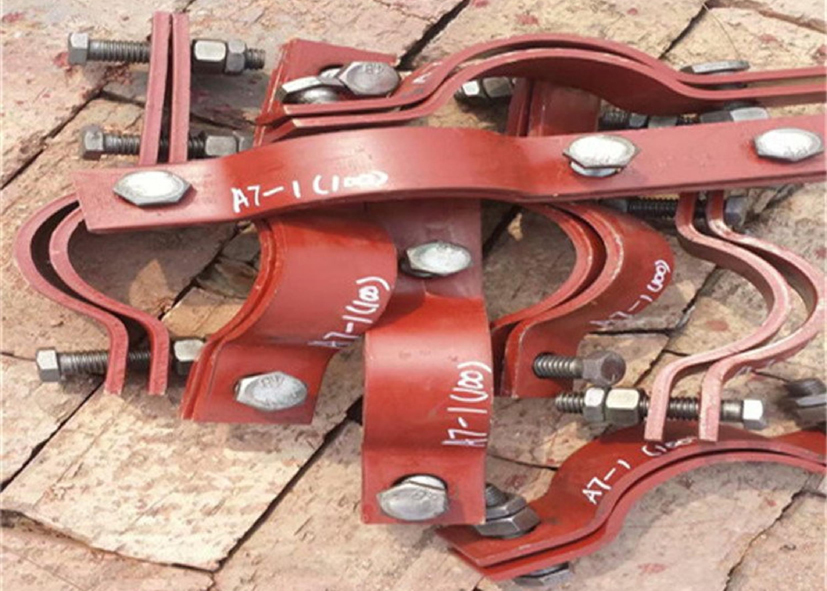

Instructions for design and selection of three-bolt pipe clamps:

1. Each structural type in the pipe section is marked with the scope of application, and the selection should be based on the medium temperature of the pipe and the requirements of supporting and hanging.

2. Some structural types are universal for pipes with different medium temperatures, but the materials used at various temperatures are different, and the allowable loads are also different. Therefore, special attention should be paid to correctly indicating whether the code of the material and the allowable load can meet the requirements of the design load when issuing the label.

Some structural types have two series: light load and heavy load. (Such as type d2 and type d2a) should be selected correctly according to the design load of the pipeline.

4 The pmax and pg of the root in the selection table of pipe parts and connecting parts refer to the “large allowable load” when the pipe is in cold or hot state. Therefore, hangers should be supported according to different operating modes (including cold and hot states) of the pipeline. Large structural loads that may appear are selected.

Three-bolt pipe clamp installation requirements

1. The location is correct, and the burying is flat and firm.

2. The contact with the pipeline should be close, and the fixing should be firm.

3. The hanger and boom of the non-heat-stretching pipeline should be installed vertically. If the hanger and boom are equipped with channel steel, the channel steel orientation should be the same. Hangers and booms with thermally stretched pipes should be offset in the opposite direction of expansion. The pipe supports and hangers fixed on the building structure shall not affect the safety of the structure.

      Hebei Zexu Pipeline Manufacturing Co., Ltd. has a complete production and operation management system and is one of the first companies in the industry to pass the ISO9001 quality management system certification, HSE environment, and occupational health and safety management system certification. The company has three manufacturing branches for steel pipes, pipe fittings, and boiler vessels, and has functional departments such as marketing department, technology department, purchasing department, production department, inspection department, quality assurance department, and comprehensive department. It has established a complete and complete set of quality, Safety, production and management procedures.
      After years of development, Hebei Zexu Pipeline Manufacturing Co., Ltd. has a nationwide business network and radiates to the United States, India, Pakistan, Russia, the Middle East and other countries and regions.
      Hebei Zexu Pipe Manufacturing Co., Ltd. has always adhered to the business philosophy of honesty, innovation and cooperation to promote development, customer satisfaction and trust as the foundation, sustainable development as the goal, relying on scientific management to improve quality, reduce costs, and create brands. For many consecutive years, it has been awarded as "Advanced Unit for Safety Production Standardization Construction", "Hebei Province Industrial Cluster Leading Enterprise", "AAA Credit Enterprise", "Hebei Province Metal Products Industry Leading Enterprise", "Hebei Province Key Employment Service Enterprise", "Star Enterprise", "Top 50 Industrial Enterprises in Cangzhou City", "Famous Trademark of Hebei Province", "Contract-abiding and Promise-keeping Unit", "Recommended Supplier of Main Auxiliary Equipment for Thermal Power Units" and other honorary titles.
